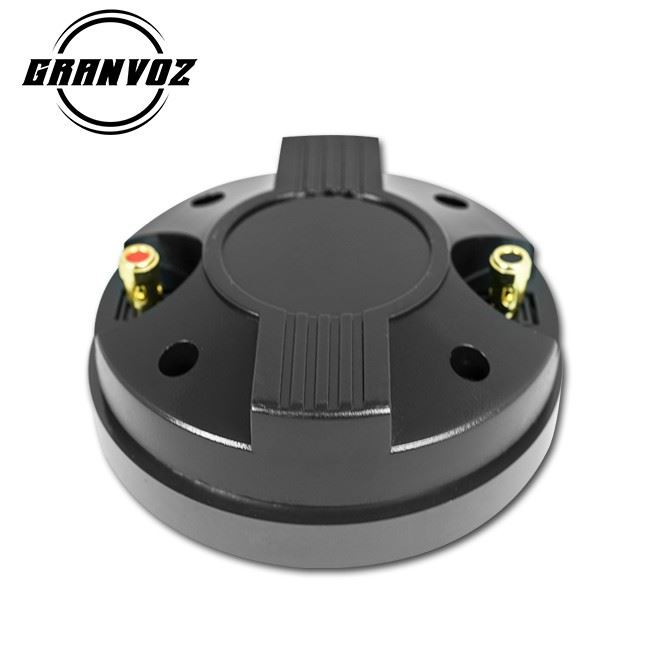

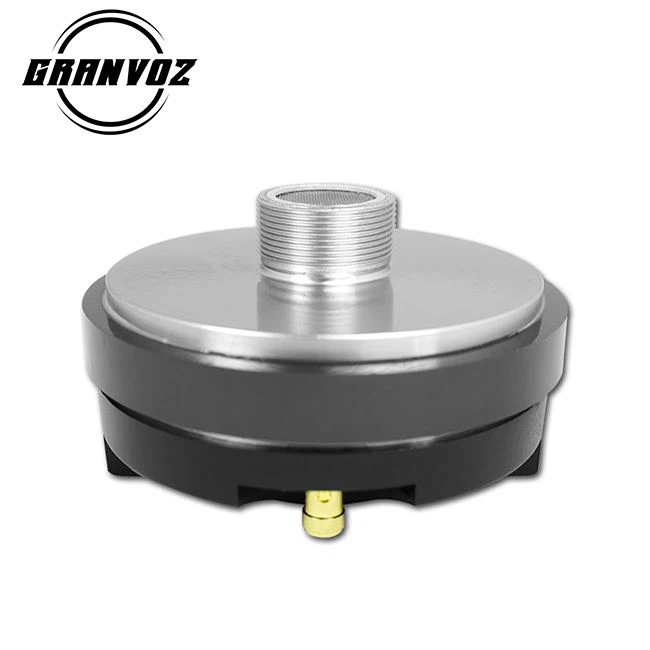

2 inch 8 ohm Tweeter Speaker Driver
| Model | GD017 |
| Nominal Impedance | 4/8 OHM |
| RMS/MAX Power | 100W/200W |
| S.P.L. (1W/1M) | 112 dB |
| FREQ,RESP | 1.2K-20KHz |
| Voice coil | 44.4mm KSV |
| Diaphragm Material | Titanium |
| Magnet （mm) | 115*60*15(20 Oz) |
| Dimension | φ115*H65(mm) |
| Net weight | 1.54 kgs |
*For any inquiries, please contact our sales:
Tel: +86-571-88254512
Mob: +8618067957747
Email: Sales20@granvoz.net
Skype: grandixyuyun
WhatsApp: 8613906520024
QQ: 3004165221
200-WATT POWER: This high powered audio projection midrange/tweeter system has a maximum power output of 200-watt peak power / 100 watt RMS so you can play your favorite tracks as loud as you want and with style
1.2k - 20 kHz FREQUENCY RESPONSE: This car tweeter compression driver has a frequency response of 1.2k -20 kHz that will complete your current car woofer enclosure system for full-range stereo sound reproduction. Fits horns with 1 3/8'' x 18 TPI threads
8 OHM IMPEDANCE: This car tweeter has a 1.75" flat aluminum voice coil, 205 type terminals, 112 dB SPL & 8ohm impedance rating that compensates the undersized wire found in most cars. Ultimately reduces distortion so you can enjoy a crisp & clear sound
20 OZ MAGNET STRUCTURE: These tweeters have a 20 oz magnet structure. The heavy-duty housing provides a strong foundation & is easy to install to your car's sound system. Provides the crispest, most accurate highs possible w/ modern speaker technology
Titanium Diaphragm
1.75 (44.4mm) Flat Aluminum Voice Coil
Frequency Response: 1.2kHz - 20kHz
Granvoz has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear. Granvoz Drivers are all manufactured with a close attention to detail, and maintain tight manufacturing tolerances, which are both necessary to produce a quality product. Pyle Midrange / Tweeter Compression Drivers are second to none, and feature solid construction and accurate power handling ratings.
FAQ
1) What is the cone material?
We use 25.4mm voice coil .and SILK cone.
2) What is the lead time for one order?
The lead time normally is 40-50days
3) What is the MOQ if OEM packing
The OEM packing need 1000prs .
4) Do you offer sample free?
You can ask sample after we discuss the price and the details. But you need to pay sample cost and the shipping cost.
5) What is your main market ?
The main market for this tweeter is USA, South America . Also we sell to Iran, Turkey ,Spain .
