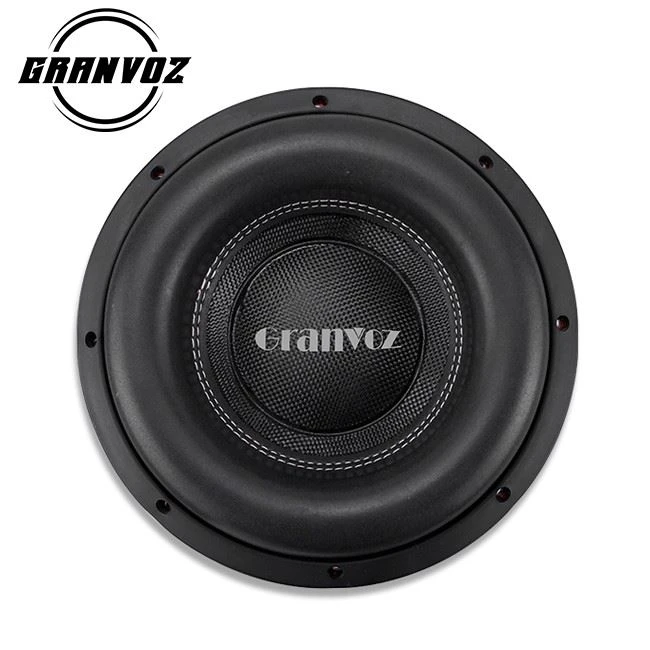

Subwoofer 15 inch 3600 watts
| Model | SUB-0515A |
| SIZE | 15 inch |
| Nominal Impedance | 1 OHMS x2（DC:0.9 OHMS*2） |
| RMS/MAX Power | 1800W/3600W |
| S.P.L. (1W/1M) | 86 dB |
| FREQ,RESP | 35Hz-500Hz |
| Voice coil | 3"BAVC |
| Magnet | 220*115*20 mm*3 (300 OZ) |
| Material | Aluminum basket, Non-pressed paper cone with foam edge, 2 side outlet ,with magnet rubber cover. Winding height 50mm, double damper |
*For any inquiries, please contact our sales:
Tel: +86-0571-88254512
Mob: +86 18067957747
Email: Sales20@granvoz.net
Skype: grandixyuyun
WhatsApp: 8613906520024
QQ: 3004165221
15 inch subwoofer in high quality aluminum basket with 2 side outlet. Made with dry paper cone, foam edge and paper dust cap. We make some of the best subwoofers that line up with other well-known brands. This subwoofer provides stable high power from RMS 1800W to MAX 3600W. 3 inch BAVC will make sure it supports the sound quality and high wattage performance. Other Specs: 300 Oz magnet (diameter 220*115*20mm*3) with rubber cover. 15mm T-yoke and washer PI winding 50mm with double damper. Frequency range from 30 to 2000Hz. 85dB/W/M sensitivity.
Specs:
SIZE: 15" SUBWOOFER
DRY PAPER CONE, FOAM EDGE PAPER DUST CAP 2 side outlet
POWER: RMS1800W/ 3600 WATTS MAX.
VOICE COIL: 3" BAVC AIuminum winding 50mm double damper
MAGNET: DIA 220*115*20 mm x 3 Y30 300 oz
T-YOKE：15mm Washer:15mm
IMPEDANCE: 1 OHMS x2 （DC:0.9 OHMS*2）
FREQ.RESP.: 35-500HZ SENSITIVITY: 86 DB/W/M
FAQ
What's the material of the voice coil? The voice coil in this product is BAVC. Different from the KSV, it can support high power speakers, and still be stable.
Do you provide OEM service?
Yes, we can help you with custom box and sticker once we've confirmed with price and quantity.
